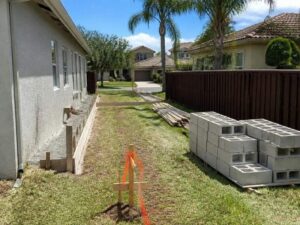

An addition on a narrow lot has almost no room for error. Move a wall four inches the wrong way and the property line setback is gone. Construction surveying for home additions verifies the work at points where a mistake is still cheap to fix, which on these jobs means before concrete and before framing.

The tight part is what changes the job. On a wide lot, small errors get absorbed. Here they get built.

The Existing House Is Almost Never Square

Additions get designed as if the original structure has right angles and straight walls. Older homes rarely do. Walls bow, corners drift and foundations settle unevenly over decades.

That creates a decision nobody makes on paper. Should the addition follow the existing wall line, or should it follow the true square? Both choices cause problems, and a building layout survey tells you which problem you’re choosing.

Following the old wall keeps the roofline and siding clean where they meet. Following the true square keeps the new rooms usable and the new footprint honest against the property line. On a tight lot, that second concern usually wins.

Measuring the House Before Layout

The surveyor should locate the existing building corners and wall faces before any stakes go in. That produces a real outline of what’s there rather than what the plans assume.

Compare that outline against the site plan. Differences of several inches are common on older homes, and each one eats into the setback margin your design was counting on.

Do this early enough to change the design. Finding a four-inch discrepancy during layout week is a schedule problem. Finding it during design is a line on a drawing.

Verify Before the Concrete Truck

Forms are the last easy moment. Once footings are poured, the geometry is fixed and every fix is destructive.

A form check confirms the forms sit where the approved plan put them, measured against the property lines rather than the house. That distinction matters, since measuring from a wall that’s out of position carries the error forward.

Ask for this check as a separate visit rather than a favor during staking. Contractors are usually pouring the next morning, and a same-day verification with no time to correct anything is worth very little.

Setback Margin Disappears in Small Pieces

The wall face is not the closest point to the property line. Footings project outward below grade, and roof overhangs, gutters, window trim and mechanical equipment all extend past the wall above.

Local codes treat these differently. Some allow eaves to project into a setback by a stated amount, others do not, and equipment placement often has its own rule.

Get clarity on which projection rules apply before layout. A design that puts the wall exactly at the setback line leaves nothing for the parts that stick out.

Holding Control on a Lot With No Room

Survey control needs points that stay put. On a tight lot, the house occupies the middle and the equipment occupies the rest, so there’s nowhere obvious to leave a mark.

Good practice on these sites includes several things:

• Setting control outside the work zone, sometimes on the far side of the lot
• Using offset reference marks so a lost point can be reestablished
• Documenting control on a sketch the contractor keeps on site
• Rechecking control after any heavy equipment work near a point
• Marking points in a way that survives foot traffic and material storage

Contractors destroy control marks constantly. Assume it will happen and plan the offsets accordingly rather than treating each loss as a surprise.

The Neighbor Situation

Close-in additions put work near a property line that someone else lives on. Excavation, scaffolding and equipment swing often need space beyond your line.

A marked boundary keeps that conversation factual. When a neighbor can see where the line sits, most disputes end before they start.

Watch for existing encroachments too. A neighbor’s fence, shed or driveway sitting inside your line changes what space you actually have to build in, and finding it during excavation is the worst possible timing.

Checkpoints Worth Putting in the Schedule

Three verification points cover most of the risk on a tight-lot addition.

The first is layout, where the additional footprint gets staked against the property lines. The second is the form check before any concrete. The third is a wall line check once framing goes up but before sheathing, since a framed wall can still be adjusted and a finished one cannot.

Add a final as-built survey at completion. Many jurisdictions require it, and on a tight lot it’s the document that proves the finished structure sits where the permit allowed.

What Actually Delays These Jobs

Ordering the surveyor late is the common one. A crew scheduled with two days notice may not be available, and the pour waits.

Assuming the original survey is current is another. Fences move, neighbors build and right-of-way lines change. An old drawing may not reflect what’s on the ground today.

The third is treating verification as optional once things look right by eye. Four inches is invisible to a tape measure held against a crooked wall, and it’s exactly the amount that fails a setback.

Frequently asked questions

When should the construction surveyor be involved in an addition?

Bring the surveyor in before design is finalized so the existing structure can be measured against the site plan. Layout follows once permits are issued. Additional visits should cover the form check before concrete and a wall line check during framing. Booking all of these at the start protects the schedule.

Why measure the existing house if we already have a survey?

A boundary survey shows the property lines and general building location. It may not include precise wall faces and corner positions needed to tie a new structure to an old one. Older homes are often out of square by several inches. Those differences directly affect setback margins on a narrow lot.

Do roof overhangs count against the setback?

That depends on the local code. Many jurisdictions allow limited projections for eaves and similar features, and some allow none. Mechanical equipment often has separate placement rules. Confirm the applicable provisions with the permitting office before finalizing the wall location.

What happens if the foundation ends up in the wrong place?

Options depend on how far off it is and what the code allows. Small errors may be resolved through a variance or an adjustment during framing. Larger ones can require removing and repouring the foundation. This is why the form check before concrete matters more than any other visit.

Is an as-built survey required after an addition?

Many jurisdictions require one before final inspection or a certificate of occupancy. Even where it is optional, it documents the finished structure’s position relative to the property lines. That record helps with future permits, sales, and any later boundary question. Budget for it at the start rather than treating it as an extra.
