Internal circulation looks like a design problem. It’s usually a recording problem. The recorded plat for your site may already dictate where drives can go, who may use them and who pays to maintain them. Design a private road network without reading that document first and you’ll redraw it after the first review comment.

Plats outlive the people who wrote them. The language in one recorded 30 years ago still binds your project today.

The Plat Is a Legal Document, Not a Reference Drawing

A recorded plat divides land and creates the lots, tracts and rights that come with them. Once recorded, it carries legal effect. Design drawings do not override it.

That means the plat can create obligations your title report summarizes but does not fully explain. Access rights, maintenance duties and use restrictions frequently live in the plat rather than in a separate agreement.

Pull the actual recorded copy. Working from a title exhibit or a county GIS image loses the notes, and the notes are where the restrictions hide.

Tracts Are Not Lots

Plats often create tracts alongside buildable lots. A tract might hold a drainage facility, a road, a landscape buffer or a utility corridor.

Each tract carries a stated purpose and an owner. A tract dedicated for drainage generally cannot host a drive aisle, even when it sits exactly where you want one.

Check who owns each tract on your site. Sometimes it’s the developer, sometimes an association and sometimes an agency. That answer determines who has to sign off on any change.

Dedication Language Controls Access

The dedication section states what was granted, to whom and for what purpose. Read it word for word.

Public dedication of a road means the public has rights in it. Private dedication to an association means a defined group holds those rights. A drive shown on a plat with no dedication language may create no rights at all.

Watch for limits on the grant. Some dedications restrict use to specific lots, specific purposes or specific hours. Others reserve the grantor’s right to relocate or expand.

Plat Notes Are Where Projects Die

Notes on a recorded plat carry the same weight as the drawing. They regularly include restrictions nobody expects.

Common notes worth locating before design:

• Limits on the number or location of access points to a public road
• Requirements that lots take access only from an internal drive
• Cross-access obligations between specific lots or tracts
• Maintenance responsibility for private roads and drainage
• Restrictions on building over or fencing across an access tract
• Sight distance or corner clearance requirements at intersections

The access point limit causes the most damage. A note capping one connection per frontage can invalidate an entire circulation plan, and it rarely appears in a summary of title exceptions.

Cross-Access Between Parcels

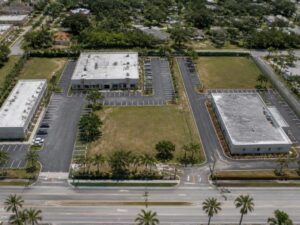

Commercial and mixed-use plats often require adjoining parcels to connect. The intent is to let vehicles move between sites without returning to the main road.

Where those connections were platted, they usually have a fixed location. Moving one to suit your building layout may require agreement from the neighboring owner and sometimes a replat.

Also confirm whether the required connection was ever built. Plenty of plats show a cross-access stub that never got constructed, and the obligation may still be enforceable when your project triggers review.

Who Maintains a Private Road

Private internal roads carry a maintenance obligation that has to land somewhere. The plat, the declaration or a separate agreement should name the responsible party.

Gaps happen. A plat may create a road tract without clearly assigning long-term maintenance, which leaves lot owners arguing about repaving years later.

Sort this out before you record anything new. Buyers, lenders and eventually a homeowners or property owners association all need to know who pays. Ambiguity here shows up as a title objection during unit or lot sales.

Design Standards Still Apply to Private Roads

Private does not mean unregulated. Many jurisdictions set minimum widths, turning radii and pavement sections for private roads, particularly where emergency vehicles need access.

Fire access requirements deserve early attention. Apparatus turning movements and dead-end turnaround requirements often drive the geometry more than passenger vehicles do.

Utility providers have their own standards for what they’ll install within a private drive. Confirm those before finalizing the section, since a change late can affect the road width you platted.

When You’ll Need a Replat

Changing what a recorded plat established generally requires formal action. Vacating a tract, relocating a dedicated access point or changing lot lines usually means a replat or a plat amendment.

That process takes real time and often requires consent from parties with rights under the original plat. Lenders and associations may need to join.

Ask early whether your circulation plan can work within the existing plat. Redrawing the design usually costs less than replatting, and the answer to that question belongs at the start of the project.

Frequently asked questions

What is the difference between a recorded plat and a survey?

A recorded plat is a legal document filed in the public records that divides land and creates lots, tracts, and dedicated rights. A survey is a measurement of existing conditions or boundaries prepared for a client. The plat creates rights, while a survey documents facts. Most projects need both.

Can we build a driveway across a tract shown on the plat?

Only if the tract’s stated purpose allows it. Drainage, utility, and landscape buffer tracts commonly prohibit crossing improvements or require permission from the tract owner. Some allow crossings under stated conditions. Review the dedication language and any plat notes before assuming access is available.

Do plat notes really restrict what we can build?

Yes. Notes on a recorded plat carry legal weight and frequently limit access points, require internal circulation, or assign maintenance duties. Reviewers check them during permitting. Locate and read every note on the recorded document rather than relying on a title summary.

Who is responsible for maintaining a private internal road?

That should be stated in the plat, the declaration, or a recorded maintenance agreement. Responsibility commonly falls to an association or the benefited lot owners. When the documents are silent, disputes follow. Resolve it in writing before lots or units are sold.

Do we need a replat to change the access layout?

Often yes, if the change affects a dedicated tract, a platted access location, or lot lines. Some minor changes can be handled administratively, depending on local rules. Consent from other parties with rights under the plat may also be required. Ask the reviewing agency before designing around a change.
