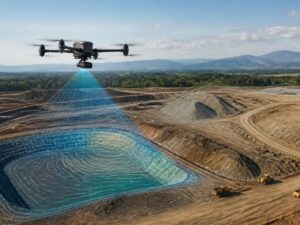

Earthwork is the line item that moves most between bid and closeout. Dirt gets hauled, spread and paid for based on numbers somebody has to prove. Survey drones measure those quantities across an active site in a single flight, which turns a monthly argument into a math problem with an answer. That matters because the difference between two volume estimates on a large site can run into six figures.

Grading contractors track their own numbers. Owners who rely on those numbers without an independent check tend to overpay.

Why Earthwork Quantities Get Disputed

Volume is calculated between two surfaces. Change either one and the answer changes. Two parties can measure the same pile honestly and land on different totals because they started from different assumptions.

Timing adds to it. A pile measured Monday is not the pile that existed Friday. Without dated measurements everyone argues from memory.

Independent measurement settles it. A dated, surveyed surface gives both sides the same starting point instead of two competing spreadsheets.

How Drones Produce a Volume Number

A flight captures overlapping images or laser returns across the area. Processing builds a surface model of the ground as it currently sits. Volume comes from comparing that surface against a reference surface.

The reference is where most errors live. It might be the original ground before work started, the design subgrade, or a flat plane fitted under a stockpile. Each one produces a different number for the same dirt.

The Base Surface Decides the Number

Ask which base surface your surveyor used and require it in writing on every report. A stockpile sitting on sloped ground measured against a flat plane will read high or low depending on how that plane was set.

For cut and fill tracking, the original ground surface has to be recorded before any dirt moves. Miss that flight and you lose the baseline permanently. Reconstructing it later from old topo data introduces error nobody can resolve.

Toe lines matter too. The bottom edge of a pile has to be defined consistently between flights, or the volume changes without any material moving.

Stockpile Measurement for Payment

Monthly pay applications on a grading contract often reference material moved or stored. A drone flight scheduled just before each pay period gives you a measured figure to check against.

Useful practice on active sites:

• Fly on a fixed schedule tied to pay periods rather than on request
• Measure each pile separately instead of lumping material together
• Keep the same toe definition and base surface across every flight
• Record the date and time of each flight in the report
• Track material type by pile, since values differ

Separating piles by material sounds obvious and gets skipped constantly. Screened rock and unscreened spoil carry different prices, and a combined number cannot support either claim.

Tracking Fill Areas Over Time

Fill placement is harder to verify than a stockpile because the material disappears into the site. Repeat flights solve that by comparing surfaces month over month.

The difference between two dated surfaces shows exactly where material went and how much arrived. That gives you placement verification alongside quantity, which a truck ticket count never provides.

Watch for areas that gain elevation without authorization. Contractors sometimes place surplus material in low spots rather than hauling it off, and that fill may sit outside the approved grading limits.

Haul Routes and Site Access

Haul roads take a beating and rarely get looked at until something fails. Aerial data records the running surface, and repeat flights show where it’s rutting or holding water.

Route length and grade also affect cost. Measured data lets you compare two possible haul paths across the site before committing equipment to one.

Off-site conditions deserve attention as well. Tracking where trucks enter and exit helps document street conditions near the site, which becomes useful if a neighboring owner or the municipality raises a complaint later.

What a Drone Volume Cannot Tell You

Drone data measures the shape of material in place. It does not measure weight, moisture content or compaction.

That distinction matters when contracts pay by the ton or reference compacted volume. Converting a measured volume to weight requires density values from testing, and material shrinks or swells between its natural state, a loose pile and compacted fill. Those conversion factors come from a geotechnical source, not from the flight.

Buried material is invisible too. If fill was placed before your first flight, the surface model records the result and not what’s underneath. Density testing and probing handle that part.

Vegetation causes trouble on camera-based work. Grass and brush growing over a pile raise the measured surface. Ask how vegetation was handled before you accept a number from an overgrown area.

Fitting Flights Into the Grading Schedule

Fly before anything moves. That original surface is the reference every later calculation depends on, and it exists for exactly one day.

Then set a recurring interval. Monthly works for most active grading operations, and weekly makes sense during heavy import or export periods. Put the schedule in the contract so it does not become a negotiation each month.

Share the results with the contractor. Volume tracking works best as a shared record rather than a gotcha, and disputes drop sharply when both sides see the same dated surfaces.

Frequently asked questions

How accurate are drone volume measurements?

Accuracy depends on the ground control, the flight setup, and how carefully the base surface is defined. Well-controlled work is accurate enough for pay quantity verification on most earthwork contracts. The base surface definition affects results more than the equipment does. Ask for the control and checkpoint information with every volume report.

Can a drone measure material by weight or tonnage?

No. A drone measures volume in place, not mass. Converting volume to tons requires density values from material testing, and those numbers vary with moisture and compaction state. Pair the survey with geotechnical testing when your contract pays by weight.

How often should we fly tan active grading site?

Monthly flights match most pay application cycles and work well for routine tracking. Weekly flights make sense during heavy import or export activity. Always fly once before any dirt moves to establish the baseline. Set the interval in the contract rather than deciding month to month.

Does vegetation affect stockpile measurements?

It can. Camera-based mapping records the top of grass or brush rather than the material surface beneath it. Keeping active piles clear helps, and LiDAR handles light vegetation better than photogrammetry. Ask how the surveyor accounted for cover on any overgrown area.

Who should order the volume survey, the owner or the contractor?

The owner benefits from ordering it independently, since the measurement then verifies rather than confirms the contractor’s own numbers. Many contractors also run their own drone programs for internal tracking. Both sets of data can coexist. Independent measurement is what carries weight in a dispute.
