Why Water Problems Start Before Construction Begins

Rain is unpredictable. When water has nowhere to go, it finds the path of least resistance. That path is often through your project.

A topographic surveyor maps how water moves across your land before a single shovel touches the ground. It records elevations, slopes and existing drainage paths across the entire site. Developers who skip this step often find out what’s missing after a heavy rain soaks a half-finished job site. By then, the fix is expensive.

If you’re building where flood zones are common and stormwater rules are strict, a topographic survey isn’t optional. It’s the foundation of every drainage decision you’ll make.

What a Topographic Survey Captures on Your Site

A topographic survey records the shape of the land in detail. It’s not just a flat property map. It shows every rise, dip and slope across the site.

Here’s what it documents:

• Ground elevations at measured intervals across the site
• Existing drainage swales, ditches and outfall points
• Low spots where water pools after rain
• Trees, structures and paved surfaces that affect drainage
• Utility lines that may influence grading decisions

That data becomes the starting point for your civil engineer’s drainage design. Without it, every calculation is a guess.

Why Small Elevation Changes Are a Big Deal

One foot of elevation change can redirect thousands of gallons of water. On flat terrain, those subtle shifts are easy to miss on a visual walk-through. A topographic survey catches what the eye doesn’t.

Developers who discover drainage problems during construction face redesign costs, permit delays and potential liability if flooding spreads to neighboring properties.

How Topographic Surveys Connect to Flood Zone Requirements

Every parcel sits somewhere on FEMA’s flood maps. Those maps are built around base flood elevation (BFE) data. A topographic survey data gives you site-specific elevation numbers that correspond to those flood maps.

Comparing Your Site Against the Base Flood Elevation

If your site sits below the BFE, your grading and drainage plan has to account for that gap. A topographic survey shows exactly how much fill or regrading is required. It also supports the paperwork for elevation certificates and any FEMA map amendments that may apply to the project.

Finding Problem Areas Before Design Work Starts

Low spots on a site become drainage problem zones the moment it rains. A topographic survey flags those areas before your engineer draws a single line. You solve the problem in the design phase, not after the slab is poured.

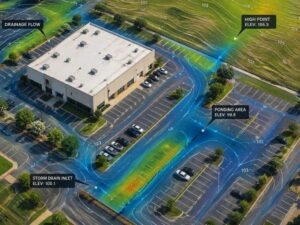

How Developers Use Topographic Survey Data in Drainage Design

Civil engineers pull directly from topographic survey data when building a drainage plan. Here’s how that works in practice.

Running Stormwater Runoff Calculations

Runoff calculations depend on slope, surface type and drainage area. All three require accurate elevation data. If that data is off, your drainage system is sized wrong from the start.

Positioning Retention and Detention Systems

Many local jurisdictions require developers to manage stormwater on-site. Topographic data shows where retention ponds, swales and detention basins can sit and how water will flow toward them. Poor placement means the system doesn’t work as designed.

Meeting Water Management Standards

Local water management agencies set strict drainage thresholds. Topo data gives engineers the numbers they need to design a system that clears those thresholds on the first submission. Incomplete or inaccurate data slows the review process and pushes your schedule back.

What Happens When Developers Skip the Topographic Survey

Some developers cut costs here. The consequences show up fast.

Common problems that follow:

• On-site flooding after the first significant rain event
• Drainage systems that fail permit review
• Neighbor complaints about redirected water flow
• Redesign costs that exceed the original survey fee by a wide margin
• Delays in certificate of occupancy

A topographic survey costs a fraction of what a drainage redesign costs. The math is straightforward.

How to Get More Out of Your Topographic Survey

Getting the survey done is only part of it. How you use the data matters just as much.

Share data with your engineer early. Don’t wait until design is underway. Give topo data to your civil engineer before any site planning starts.

Request the right contour interval. A one-foot contour interval works for most commercial and residential sites. Very flat terrain may need tighter intervals to capture grade changes accurately.

Confirm the vertical datum. Make sure your survey uses the correct vertical datum required in your area for flood zone compliance and elevation certificates.

Bundle surveys when you can. Many surveyors complete a boundary survey and site development survey at the same time.  It saves time and reduces mobilization costs.

Frequently Asked Questions

What is a topographic survey used for in drainage planning?

A topographic survey maps the elevation of a site. Civil engineers use that data to design stormwater systems, calculate runoff volumes and position retention areas correctly.

How is a topographic survey different from a boundary survey?

A boundary survey marks property lines. A topographic survey maps the surface elevation of the land. Both serve different purposes and are often needed on the same project.

Do I need a topographic survey to get a building permit?

Most local jurisdictions require drainage plans as part of a permit package. Those plans must be based on accurate elevation data, which comes from a topographic survey.

How long does a topographic survey take?

Field work on a standard commercial site typically takes one to three days. Final deliverables are usually ready within one to two weeks after field work, depending on site size and complexity.

Can a topographic survey help with FEMA flood zone issues?

Yes. Topographic data supports elevation certificates and can be used when applying for FEMA map amendments. If a site sits above the base flood elevation, accurate survey data documents that clearly.
